System Updated! Most Economic Manual BGA Rework Machine WDS-430 Xbox one Repair Machine

Ask Lasest Price
Brand Name :	wisdomshow
Model Number :	wds 430
Delivery Time :	2-5days
Payment Terms :	t/t .paypal . western union .others
Supply Ability :	1000sets for one month

Add to Cart

Product Details
Company Profile

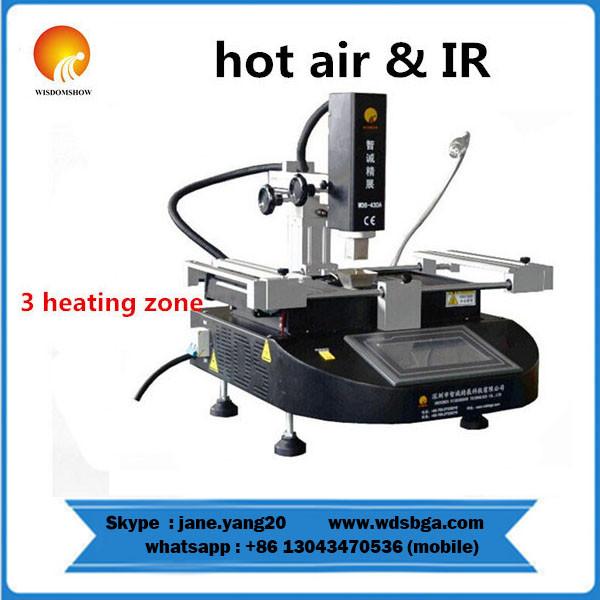

System Updated! Most Economic Manual BGA Rework Machine WDS-430 Xbox one Repair Machine

Outstanding features of WDS-430 bga rework station:

1. Hot selling manual bga rework station with touch screen,100% success rate

2. 3 temperature zones, top heater, bottom heater, pretheating zone

3. USB Ports

4. Top air flow adjustable

5. 7 high definition touch screen, easy to operate and conrtol

6. Support 7 temperature profiles

7. Programmable PLC controller

8. Emergency stop buttom

9. With vacuum pen,easy to take chips out

10. With LED light

11. Operation interface can be English, Spanish, Portuguese,etc

12. Automatic force air cooling.

13. CE ISO9001 approval.

*What's the Technical parameter of WDS-430 bga rework station?

Total Power	4800W
Upper Heating Power	800W
Lower Heating Power	Second zone:1200W, Third zone: IR 2700W
Power Supply	AC 110V/220V±10% 50/60HZ
Overall Dimension	L605W600H520mm
Locating Mode	V-shape card slot, PCB holder can be adjustable by X and Y axes with universal jigs.
Temperature Controlling	K-type thermocouple closed loop control, independent temperature control, precision up to ±3 degree
PCB Size	Max 380320mm, Min 1010mm
Electrical Material	High sensitive temperature control module, Delta PLC, Touch Screen made-in Taiwan
Weight of machine	30KG

*What's the Specifications of WDS-430 bga rework station?

1.Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability. Xbox one Repair Machine
2.Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.
3.Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.
4.The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly. Xbox one Repair Machine
5.High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
6.Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.
7.Having alarm prompt function after welding is done, specially added early warning function for convenient operation.
8.It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function. mobile phone bga rework station Xbox one Repair Machine

1.Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability. Xbox one Repair Machine

2.Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

3.Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

4.The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly. Xbox one Repair Machine

5.High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.

6.Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.

7.Having alarm prompt function after welding is done, specially added early warning function for convenient operation.

8.It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function. mobile phone bga rework station Xbox one Repair Machine
